Applications of Pin Mount Telescopic Cylinders

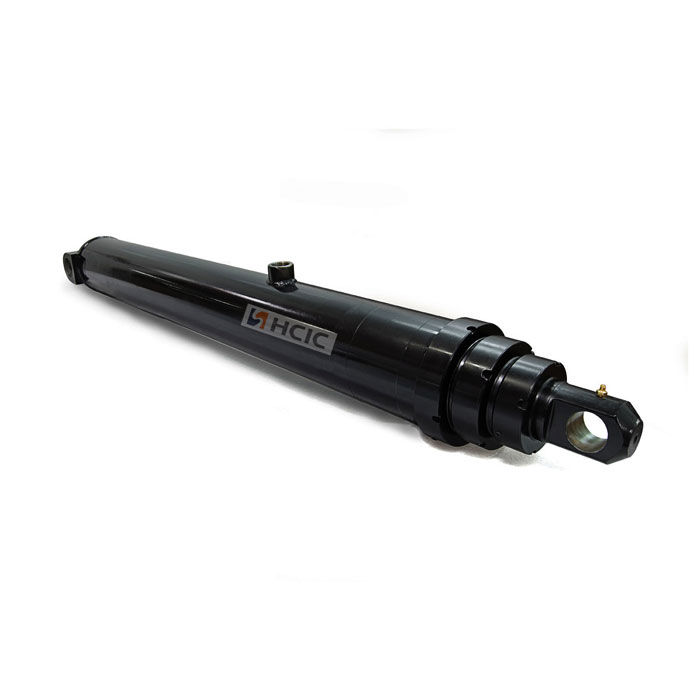

Pin mount telescopic cylinders, also known as multi-stage telescopic cylinders, are hydraulic or pneumatic actuators designed to provide extended stroke lengths in a compact form factor. Here's an overview of their features and applications:

1. Telescopic Design: Pin mount telescopic cylinders feature multiple stages or nested tubes that extend and retract telescopically. Each stage slides within the next larger stage, allowing the cylinder to achieve greater stroke lengths compared to single-stage cylinders of similar overall length.

2. Pin Mounting: These cylinders are typically mounted using pins or clevises at either end. The pins provide secure attachment points for connecting the cylinder to the equipment or machinery it operates.

3. Adjustable Stroke Length: Pin mount telescopic cylinders allow for adjustable stroke lengths by extending or retracting individual stages. This flexibility enables customization to fit specific application requirements, such as varying loads or space constraints.

4. Compact Size: Despite their extended stroke lengths, pin mount telescopic cylinders are designed to be compact, making them suitable for applications where space is limited. Their nested design allows for a longer stroke within a relatively small envelope.

5. High Load Capacity: These cylinders are capable of handling high loads due to their robust construction and multiple stages. They are commonly used in heavy-duty applications such as construction equipment, material handling machinery, and industrial presses.

6. Smooth Operation: Pin mount telescopic cylinders provide smooth and precise movement, ensuring accurate positioning and control in various applications.

7. Hydraulic or Pneumatic Operation: These cylinders can be operated hydraulically or pneumatically, depending on the requirements of the application. Hydraulic cylinders offer higher force capabilities, while pneumatic cylinders are often preferred for faster operation and cleaner environments.

Overall, pin mount telescopic cylinders offer a combination of extended stroke lengths, compact design, and high load capacity, making them versatile components in a wide range of industrial and mobile equipment applications.
