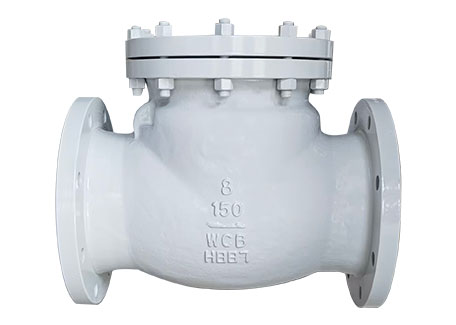

Components of A Swing Check Valve

A swing check valve is a type of check valve used in piping systems to prevent backflow of fluids. It operates by allowing flow in one direction while automatically closing to prevent reverse flow. The key components of a swing check valve include:

1. Body: The main body of the valve houses the internal components and provides the connection points for the piping system.

2. Swing Disc: This is a disc or flap suspended from a hinge within the valve body. When there is forward flow, the pressure of the fluid pushes the disc open, allowing the fluid to pass through. When flow stops or reverses, the disc swings back into a closed position, preventing backflow.

3. Hinge Pin: The swing disc is attached to the valve body via a hinge pin, allowing it to pivot freely.

4. Seat: The seat is the sealing surface against which the swing disc makes contact when in the closed position. It ensures a tight seal to prevent leakage.

5. Body Bonnet: Some swing check valves have a removable bonnet, which allows access to the internals of the valve for maintenance or repair.

Swing check valves are commonly used in various industries and applications, including water supply systems, wastewater systems, HVAC systems, and industrial processes. They are relatively simple in design and operate automatically, making them reliable for preventing backflow in piping systems. However, it's essential to choose the appropriate size, material, and design of swing check valve based on the specific requirements and conditions of the application.
