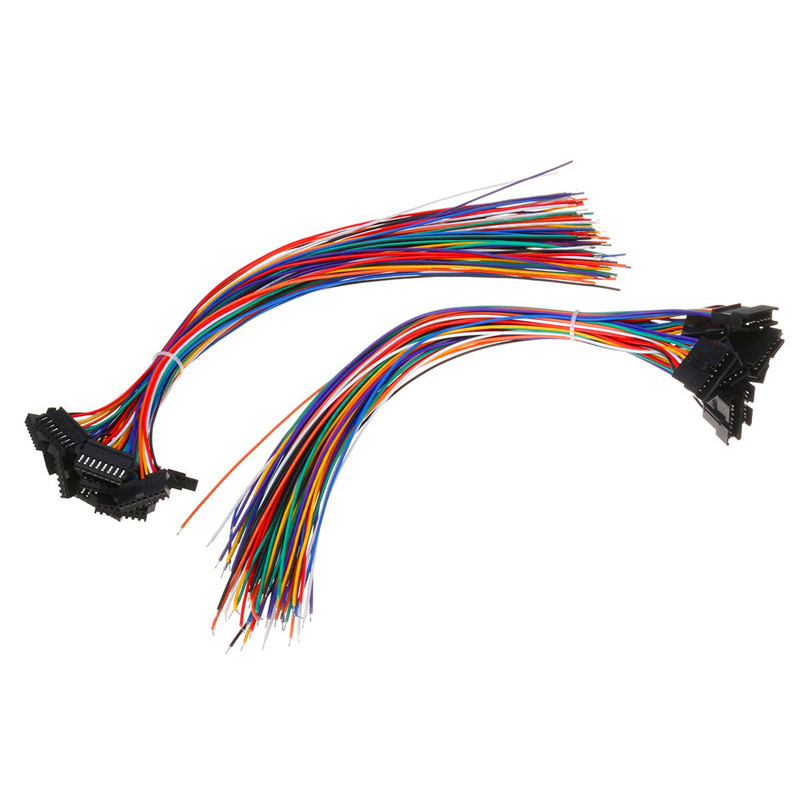

Components of JST SM 8 Pin 2.5mm Male Female Wire

The "JST SM 8 Pin 2.5mm Male Female Wire" refers to a wiring setup using JST SM connectors with 8 pins and a 2.5mm pitch. JST (Japan Solderless Terminal) connectors are widely used in various electronic applications for their compact size and reliability. Here's a breakdown of the components and specifications:

1. JST SM: This indicates the connector series and type. The JST SM series is a popular series known for its small form factor and is often used in applications where space is limited.

2. 8 Pin: This specifies the number of pins or contacts in the connector. In this case, there are eight pins, allowing for eight individual electrical connections.

3. 2.5mm Pitch: The pitch refers to the distance between the centers of adjacent pins. A 2.5mm pitch means that the distance between the centers of two adjacent pins is 2.5mm. This information is crucial for ensuring compatibility with other connectors or devices.

4. Male and Female: In a connector pair, the "male" connector typically has protruding pins, while the "female" connector has receptacles to accept those pins. This allows for a secure and reliable connection between devices.

5. Wire: This refers to the cables or wires attached to the connectors. The wires are used to transmit electrical signals or power between devices. The length and gauge of the wires can vary based on the specific application.

Applications for a JST SM 8 Pin 2.5mm Male Female Wire setup could include various electronic devices, such as sensors, small motors, LED strips, or other components where a compact and reliable connection is required.

When working with connectors and wires, it's essential to confirm the specifications, such as pitch, pin count, and gender, to ensure proper compatibility with the devices you are connecting. This information helps you choose the right connectors and wires for your specific electronic application.
