Features of Rubber Sleeve Valve

A rubber sleeve valve, also known as a pinch valve, is a type of valve that controls the flow of fluids by pinching a flexible elastomeric sleeve or tube. Here’s an overview of its features, functions, and applications:

Features of Rubber Sleeve Valve:

1. Design:

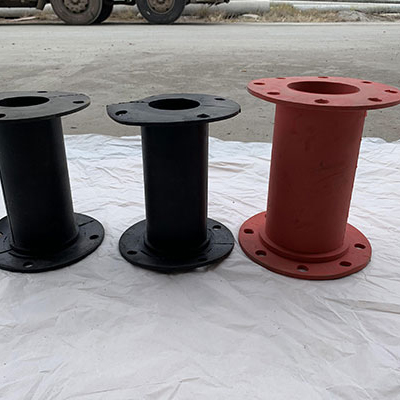

  - Elastomeric Sleeve: Made of rubber or other flexible materials that can be pinched or squeezed to control flow.

  - Body Construction: Typically made of metal, plastic, or other materials to support and protect the sleeve.

2. Operation:

  - Pinching Mechanism: Flow control is achieved by compressing the sleeve, thereby restricting or stopping flow through the valve.

  - On/Off Control: Provides reliable on/off control without leakage when closed, due to the complete closure of the elastomeric sleeve.

3. Applications:

  - Corrosive Fluids: Suitable for handling corrosive or abrasive fluids, slurries, and solid-laden liquids.

  - Biological and Chemical Applications: Used in pharmaceutical, food processing, wastewater treatment, and chemical industries.

  - Mining and Construction: Effective in controlling the flow of abrasive materials in mining and construction applications.

4. Advantages:

  - Bi-Directional Flow: Allows flow in both directions, depending on the design and application requirements.

  - Low Maintenance: Minimal moving parts and no packing or seals to maintain, reducing maintenance costs.

  - Bubble-Tight Seal: Provides a tight seal when closed, preventing leakage and ensuring process integrity.

5. Variations:

  - Manual and Automated: Available in manual operation for simple applications and automated versions for remote control and integration into automated systems.

  - Materials: Offered in various elastomeric materials such as natural rubber, EPDM (Ethylene Propylene Diene Monomer), silicone, and others depending on compatibility with the fluid and operating conditions.

Considerations for Selection:

- Fluid Compatibility: Ensure compatibility between the elastomeric sleeve material and the fluid being handled to prevent degradation or contamination.

- Pressure and Temperature: Consider the operating pressure and temperature range of the valve to ensure reliable performance and longevity.

- Size and Flow Capacity: Select the appropriate valve size and flow capacity based on the application’s flow rate requirements.

- Maintenance and Replacement: Assess ease of maintenance and availability of replacement sleeves or parts to minimize downtime.

Applications:

- Food and Beverage: Control flow in processing lines for liquids and slurries in dairy, beverage production, and food processing.

- Pharmaceutical: Handle fluids in pharmaceutical manufacturing where cleanliness and sterility are critical.

- Water and Wastewater Treatment: Manage flow in water treatment plants, sludge handling, and chemical dosing applications.

- Mining and Minerals: Control abrasive slurries and mining tailings in mineral processing operations.

Rubber sleeve valves provide effective and versatile flow control solutions in various industries where reliable performance, minimal maintenance, and resistance to abrasive and corrosive fluids are essential.
