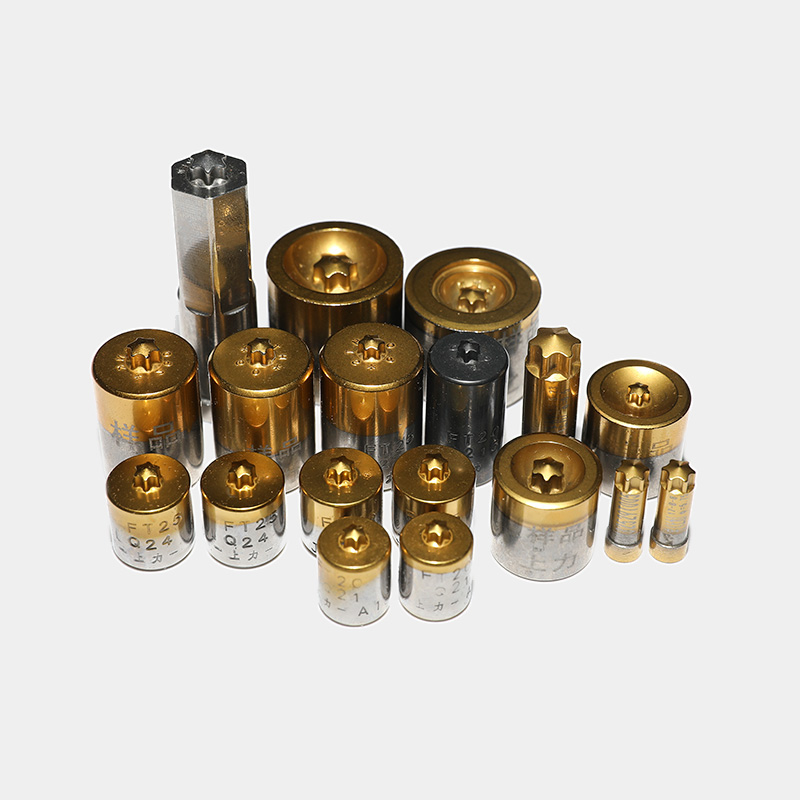

Function and Use of Screw Header Punch Pin

A screw header punch pin is a specialized tool used in manufacturing processes, specifically in the production of screw headers or screw machining operations. Here are the key points about screw header punch pins:

Function and Use

1. Header Manufacturing

  - Used in the production of screw headers, which are components used in various mechanical assemblies and fastening applications.

  - Screw headers are typically made from materials like steel or brass and can have different head shapes (e.g., slotted, Phillips, hex).

2. Punching Operation

  - The punch pin is part of a tooling system used in the punching or forming process to create the specific head shape of screws.

  - It shapes the end of the screw blank, forming features like slots or recesses that allow for tool engagement during installation or removal.

3. Precision and Durability

  - Screw header punch pins are designed to withstand repeated use in high-volume manufacturing environments.

  - They are made from hardened tool steel or carbide to maintain sharpness and dimensional accuracy over extended production runs.

4. Customization

  - Available in various sizes and configurations to accommodate different screw sizes and head designs.

  - Custom punch pins can be manufactured to meet specific production requirements, such as unique head shapes or dimensions.

Manufacturing Process

- Cold Forming: Often used in the production of screw heads where the punch pin forms the shape through controlled deformation of the material without heating.

Key Features

- Material: Typically made from high-speed steel (HSS) or carbide to withstand the wear and impact of punching operations.

- Hardness: Hardened to a specific Rockwell hardness (HRC) to maintain sharp edges and durability.

- Precision Ground: Machined to precise tolerances to ensure consistent and accurate forming of screw heads.

- Surface Coating: Some punch pins may have coatings like titanium nitride (TiN) or other treatments to reduce friction and extend tool life.

Applications

- Automotive Industry: Used in the manufacturing of automotive screws and fasteners.

- Electronics Manufacturing: Production of screws for electronic devices and assemblies.

- General Mechanical Fastening: Applications in various industries requiring precise screw fastening solutions.

Considerations

- Tool Maintenance: Regular inspection and maintenance to ensure sharpness and proper function.

- Tool Life: Monitoring tool wear and replacement based on production volume and wear patterns.

- Quality Assurance: Ensuring punch pins meet dimensional specifications and quality standards to produce consistent screw heads.

Suppliers

- DME Company LLC

- Dayton Progress Corporation

- PCS Company

- Misumi USA

- PUNCH Industry USA Inc.

Screw header punch pins are critical components in the manufacturing process of screws and fasteners, providing the precision and durability needed for reliable mechanical assemblies across various industries.
