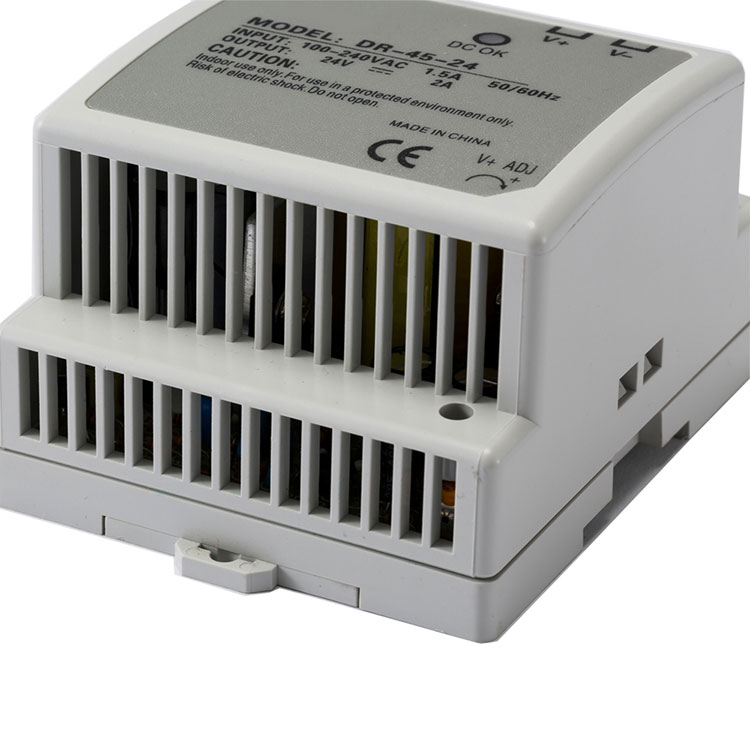

Key features and considerations for a 24V single power supply

A 24V single power supply is a type of power supply unit that delivers a consistent output voltage of 24 volts DC (Direct Current) to power electronic devices or systems. These power supplies typically convert an incoming AC (Alternating Current) voltage from a mains power source to the desired output voltage of 24V DC.

Here are some key features and considerations for a 24V single power supply:

1. Output Voltage: The primary output voltage of the power supply is 24 volts DC, which is suitable for powering various electronic devices and systems that require a 24V power source.

2. Output Current Rating: The power supply will have a specified maximum output current rating, usually measured in amperes (A) or milliamperes (mA). This rating indicates the maximum amount of current that the power supply can deliver at the 24V output.

3. Input Voltage Range: Single output 24V power supplies typically accept a wide range of input voltages, commonly spanning from 100V to 240V AC. This flexibility allows them to be used in various regions with different mains voltage standards.

4. Output Power Rating: The output power rating of the power supply is determined by multiplying the output voltage (24V) by the maximum output current (measured in watts). For example, a power supply with a 24V output and a maximum output current of 5A has a maximum output power rating of 120 watts (24V x 5A = 120W).

5. Efficiency: The efficiency of the power supply refers to how effectively it converts input electrical power into output power. Higher efficiency power supplies waste less energy as heat during the conversion process, resulting in lower operating temperatures and reduced energy consumption.

6. Protection Features: Many 24V single power supplies include built-in protection features to safeguard both the power supply itself and the connected electronic devices. Common protection features include overvoltage protection, overcurrent protection, short-circuit protection, and thermal protection.

7. Mounting and Form Factor: These power supplies come in various form factors, including desktop-style enclosures, wall-mounted enclosures, and enclosed DIN rail-mounted units. The choice of form factor depends on the application requirements and installation preferences.

8. Certifications and Compliance: It's important to ensure that the power supply complies with relevant safety and performance standards, such as UL (Underwriters Laboratories), CE (Conformité Européenne), FCC (Federal Communications Commission), and RoHS (Restriction of Hazardous Substances) directives.

24V single power supplies are commonly used in a wide range of applications, including industrial automation, machinery, control systems, telecommunications equipment, LED lighting, and more. They provide a reliable and stable source of power for various electronic devices and systems that operate on a 24V DC voltage.
