Working Principle of AC Centrifugal Fans

An AC centrifugal fan, also known as a centrifugal blower, is a mechanical device used for moving air or gases. It works by increasing the velocity of air or gas through the rotating impeller and converting this kinetic energy into increased pressure to push the air or gas through a duct or other medium. Here are the key features and components of an AC centrifugal fan:

Key Features:

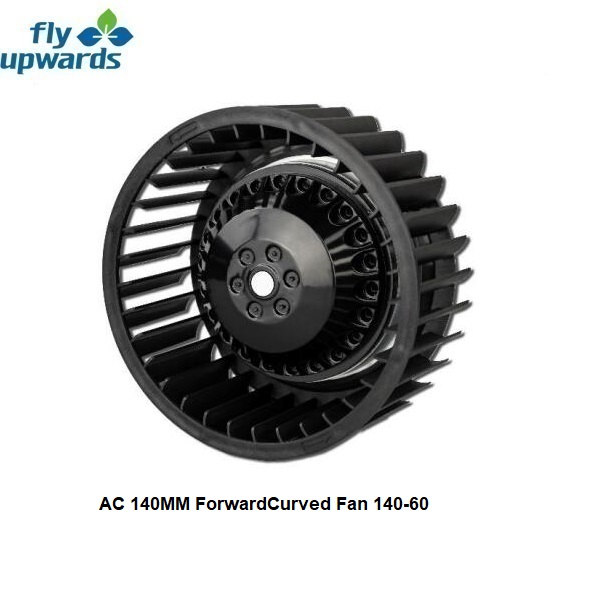

1. Impeller: The rotating component that accelerates the air. It typically has blades or vanes to direct the air.

2. Casing: Encloses the impeller and directs the airflow.

3. Inlet and Outlet: Points where air enters and exits the fan.

4. Drive Mechanism: Often an electric motor, specifically an AC (alternating current) motor in the case of AC centrifugal fans.

5. Bearings: Support the rotating shaft and allow smooth operation.

6. Control System: May include speed controllers, sensors, and other electronic components to regulate airflow and performance.

Working Principle:

1. Air Intake: Air enters the fan through the inlet located near the center of the impeller.

2. Acceleration: The impeller spins, driven by the AC motor, and the blades push the air outward due to centrifugal force.

3. Air Movement: The kinetic energy imparted to the air by the impeller blades increases its velocity.

4. Pressure Conversion: The casing around the impeller slows down the high-velocity air, converting kinetic energy into static pressure.

5. Air Exhaust: The pressurized air exits through the outlet, directed into a duct system or into the environment.

Applications:

- HVAC Systems: Heating, ventilation, and air conditioning systems for maintaining indoor air quality and comfort.

- Industrial Processes: Ventilation, cooling, and drying applications in factories and manufacturing plants.

- Dust Collection Systems: Removing dust and particulate matter from the air in industrial settings.

- Automotive: Used in vehicle heating and cooling systems.

- Clean Rooms: Ensuring a controlled, contaminant-free environment in pharmaceutical and electronic manufacturing.

Advantages:

- Efficient Airflow: Capable of moving large volumes of air efficiently.

- Pressure Capabilities: Effective at producing higher pressures compared to axial fans.

- Versatility: Suitable for a wide range of applications and environments.

- Durability: Robust design for long-lasting performance.

Maintenance Tips:

- Regular Cleaning: Prevent dust and debris buildup on the impeller and casing.

- Bearing Inspection: Check for wear and lubrication needs to ensure smooth operation.

- Motor Check: Ensure the AC motor is functioning correctly and not overheating.

- Alignment and Balance: Periodically verify that the impeller is balanced and properly aligned to prevent vibrations and noise.

Summary

AC centrifugal fans are vital components in many industrial and commercial applications where efficient air movement and pressure are required. Understanding their operation, applications, and maintenance can help ensure their optimal performance and longevity.
